Reliable for Honed Tube Seamless Hydraulic SAE1026 Cold drawn seamless honed tube export to Heard and Mc Donald Islands Exporter

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CIF
    Delivery Time: 30 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

No matter new buyer or old purchaser, We believe in long expression and trusted relationship for Sae1026 Cold Drawn Seamless Honed Tube,Sae1026 Seamless Honed Tube,Sae1026 Cold Drawn Honed Tube. We will provide high-quality products and excellent services at competitive prices. Start benefiting from our comprehensive services by contacting us today.

Reliable for Honed Tube Seamless Hydraulic SAE1026 Cold drawn seamless honed tube export to Heard and Mc Donald Islands Exporter

1. Manufacture Method: Cold drawn, hot rolled+deep hole bored

2. Size: 40mm*30mm - 600mm*500mm

3. Standard: DIN2391-2,EN10305-1,ASTM A519

4. Certification: ISO9001

Product Name:
SAE1026 Cold drawn seamless honed tube
Material:
Carbon steel,alloy steel, stainless steel
Standard&Grade:
DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.
Manufacture Method:
Cold Drawn, Hot rolled+Deep Hole Bored
Internal Surface Treatment:
Honing, Skiving&roller burnishing
Size Range:
ID of 300mm max for cold drawing, ID of 500mm for deep hole boring
Delivery Condition:
As rolled, Stress relieved,Annealed,Normalized,Quenched+Tempered
ID Tolerance:
ISO H8
Bore Roughness:
Ra0.30um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes
End finish:
Plain  ends with square cuts,free of burrs
Usage:
Hydraulic cylinder, Pneumatic Cylinder
Chemical Composition:
C:0.22-0.28, Si:0.15-0.35, Mn: 0.60-0.90, P: 0.025 Max, S:0.025 Max
Mechanical Properties:
T.S: 540 Mpa min, Y.S: 450 Mpa min, Elongation: 15% min

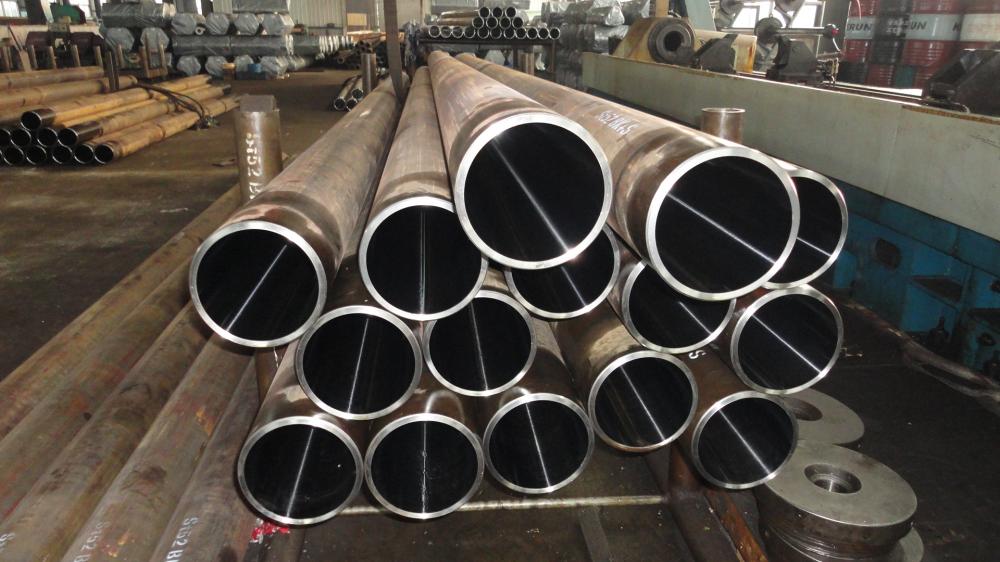

Products Show

Hydraulic Cylinder4

Our Service


MarkingPacking And Delivery

Marking

Marking or mechanical steamp on each piece of tube

External surface polishing

We can do polishing to external surface of tubes

Hard Chrome plating

We can do hard chrome plating ro internal surface of tubes

Our Company
Yangzhou Yinhe Machinery Co Ltd 3
workshop 1

Factory gate

Our Factory

Workshop-1



workshop 2

Workshop-2

Raw Material Stock

workshop-3


workshop 3
Packing & Delivery

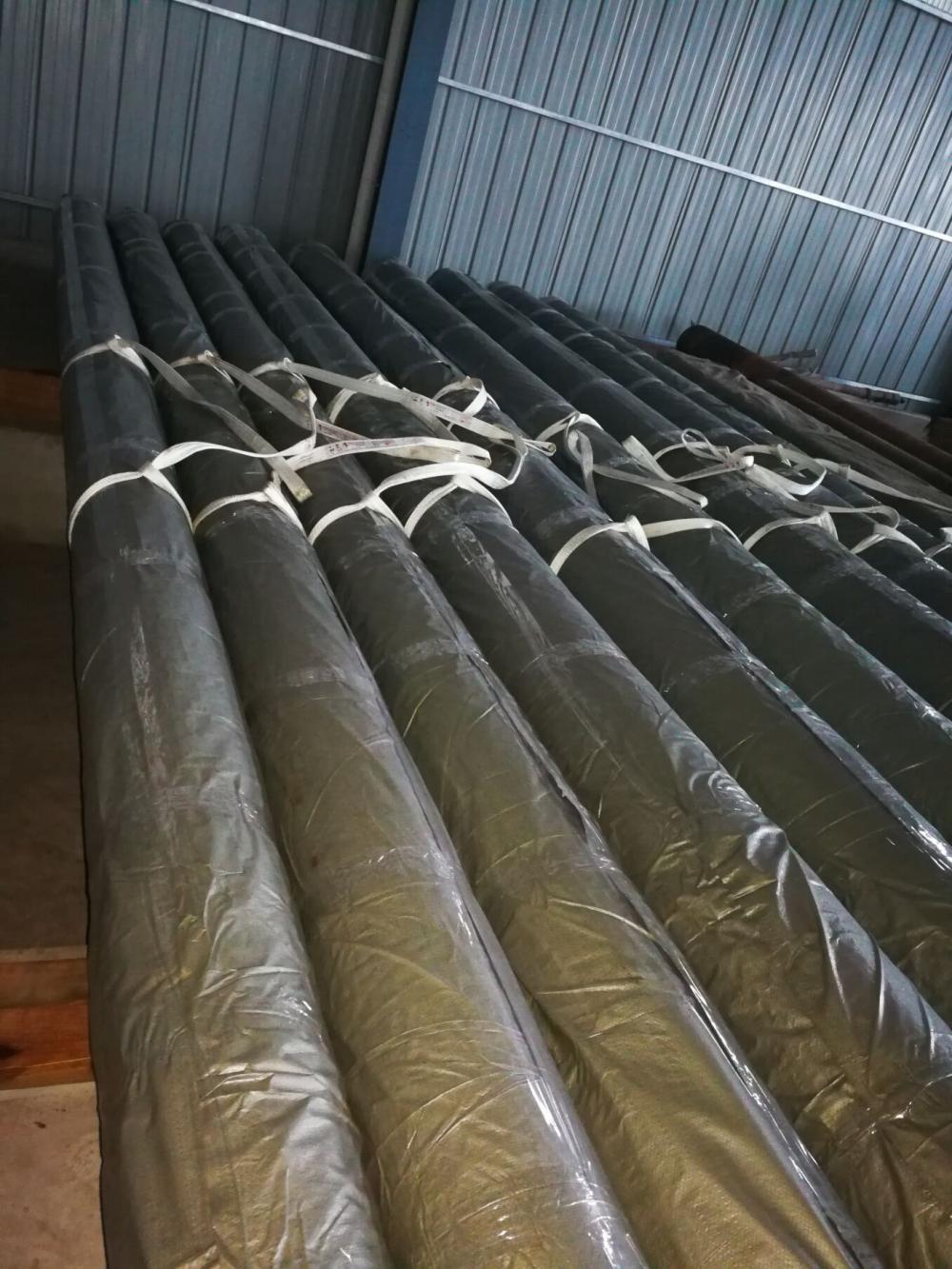

Packing Details  : Tubes packed in bundles tied with steel strips. Internal&external oil coating. End plastic caps. External packing by PVC bags and knit bags.

Delivery Details : Regular lead time is around 30-45 days.

Container loading: container loading by forklift in our workshop.



Tubes Packages 4
1. Regular packing
2. Regular packing
3. External packing


Tubes Package
4. Container loading
5. Container loading
6. Container loading
Our Certifications
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are specialized manufacturer

Q: How long is your delivery time?

A: Generally 30-45 days,depending on delivery time of raw material.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Deposit+balance before shipment,if order value is below USD20000. T/T or L/C is order value is above USD20000. For end users with long term demand,payment method can be discussed.


Q: How do you ensure quality?

A: We only use raw material from leading steel mills like TPCO,Hengyang Valin,Baosteel,etc.

We only use raw material with cylinder quality.

We inspect the tubes as cylinders itself, because we know each piece of tube means one or more pieces of cylinders.

"Our aim would be to fulfill our shoppers by offering golden company, very good value and good quality for SAE1026 Cold drawn seamless honed tube. The product will supply to all over the world, such as: Liberia,Haiti,Maldives. In addition we would properly guide the customers about the application techniques to adopt our products and the way to select appropriate materials.
